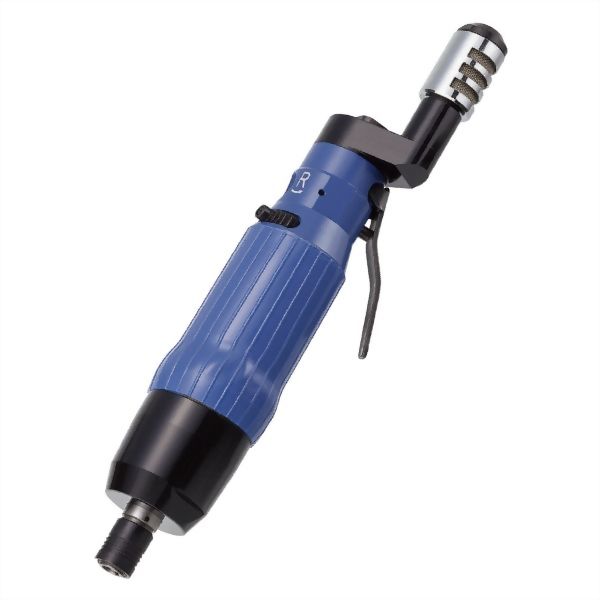

1/4" Air Oil Pulse Screwdriver
Model :
APW-70SA 1/4"
1/4" APW-70SA Shut off Type and straight design Air oil pulse screwdriver is excellent for industral assembly line. The high precision and lower maintance cost create better solution for any kind of industrial needs. The suitable torque is 16-29 (ft-lb) 21-40N.M. The weight is 2.64 lbs/1.2 kg. The thread type would be NPT in North America, PF/BSP in Europe and PT in Asia.
Model | Bolt Capacity | Clutch | Free Speed | Suitable Torque | Air lnlet | Air Hose | Air Consumption | Weight | Overall Length | Air Pressure | ||
mm | Mechanism | r.p.m. | ft-lb | N.M. | PT(in) | mm | m3/min | lbs | kg | mm | kg/cm2 | |
APW-70SA | 6-8 | Oil Pulse | 5800 | 16 - 29 | 21 - 40 | 1/4" | 8 | 0.42 | 2.64 | 1.2 | 295 | 6.3 |
