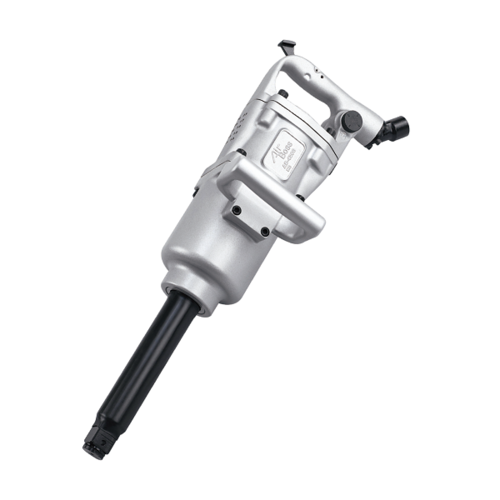

1"Air Impact Wrench
Model :
AB-4002P 1"
Pistol type air impact wrench. Tthe tool is perfect for the heavy duty work, road, buidling construction, bridge etc., The air tool is swing hammer mechanism designed that made the pneumatic wrench can sustain higher pressure. The weight is 21.1(lbs) 9.6Kg, Max torque 1771( ft-lb) 2400N.M. The tool for heavy duty industry. The wrench has different thread in every contienent，NPT is for North America, BSP/PF are for Europe & PT is for ASIA.
| Model | Bolt Capacity | Clutch | Free Speed | Suitable Torque | Max Torque | Overall Length | Net Weight | Air Consumption | Air Inlet | Air Hose | Air Pressure | |||
| mm | Mechanism | r.p.m. | ft-lb | N.M. | ft-lb | N.M. | mm | lbs | kg | m3/min | PT(in.) | mm | kg/c㎡ | |
| AB-4002P | 40 | Swing Hammer | 4200 | 649-1416 | 880-1920 | 1771 | 2400 | 290 | 21.1 | 9.6 | 0.6 | 1/2" | 12.7 | 6.3 |
