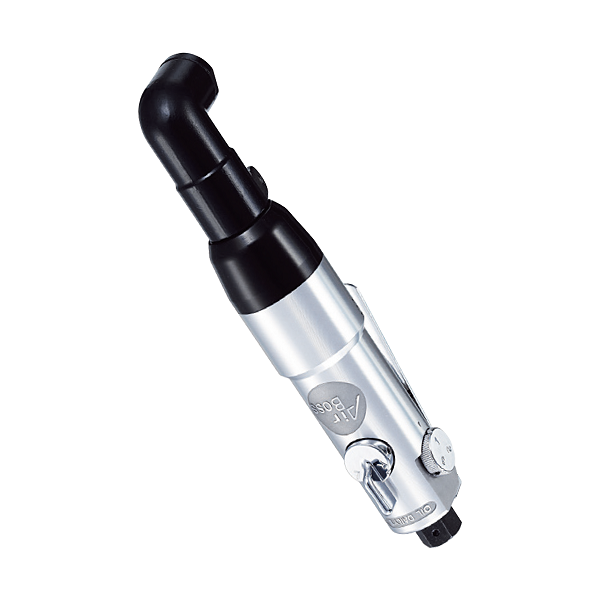

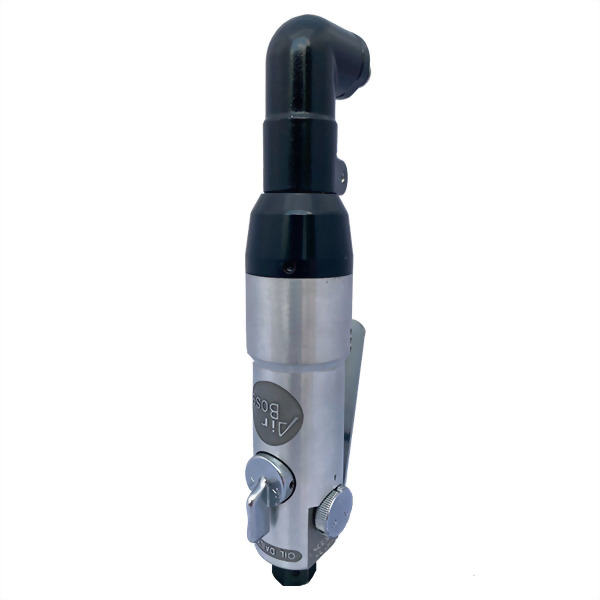

1/4" Air Impact Screwdrivers
Model :
AB-5A 1/4"
‧1/4" Screwdriver -
‧straight angle type.
‧Twin dog design
‧Torque 8-30 ft-lb (11-40 N.M. )
‧Weight : 2.2 lbs (1.0kg)
‧Work easily in the area that diffcult to reach.
‧Suitable for industrial assembly, furniture assembly, bicycle assembly, motorcycle assembly.
‧straight angle type.
‧Twin dog design
‧Torque 8-30 ft-lb (11-40 N.M. )
‧Weight : 2.2 lbs (1.0kg)
‧Work easily in the area that diffcult to reach.
‧Suitable for industrial assembly, furniture assembly, bicycle assembly, motorcycle assembly.
| Model | Bolt Capacity | Clutch | Free Speed | Suitable Torque | Overall Length | Net Weight | Air Consumption | Air Inlet | Air Hose | Air Pressure | ||
| mm | Mechanism | r.p.m. | ft-lb | N.M. | mm | lbs | kg | m3/min | PT(in.) | mm | kg/c㎡ | |
| AB-5A | 4-5 | Twin Dog | 10000 | 8-30 | 11-40 | 195 | 2.2 | 1.0 | 0.2 | 1/4" | 6.4 | 6.3 |
