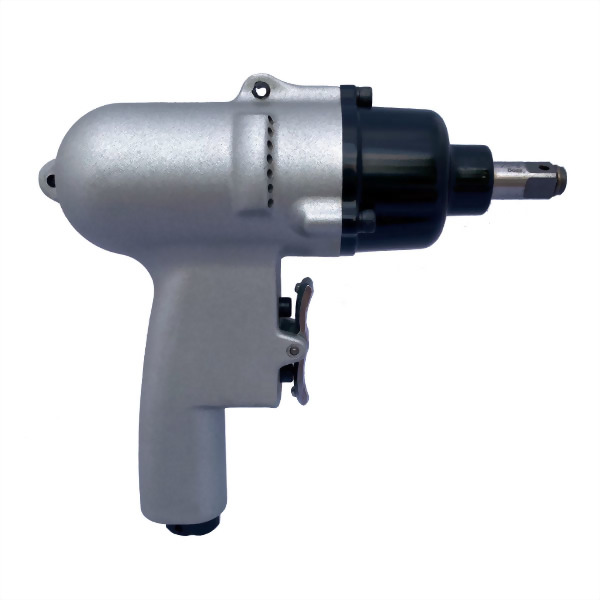

3/8"Air Impact Wrench
Model :
AB-10PDH 3/8"
AB-10PDH 3/8" pneumatic gun wrench, Twin hammer structure, seesaw machine design, torque 22-52 (ft-lb) 30-70 NM, weight 2.6 lbs (1.2kg) suitable for Industrial assembly, furniture assembly, bicycle assembly, motorcycle assembly and shipyards.
| Model | Bolt Capacity | Clutch | Free Speed | Suitable Torque | Overall Length | Net Weight | Air Consumption | Air Inlet | Air Hose | Air Pressure | ||
| mm | Mechanism | r.p.m. | ft-lb | N.M. | mm | lbs | kg | m3/min | PT(in.) | mm | kg/c㎡ | |
| AB-10PDH | 8-10 | Twin Hammer | 8500 | 22-52 | 30-70 | 178 | 2.6 | 1.2 | 0.3 | 1/4" | 6.4 | 6.3 |
