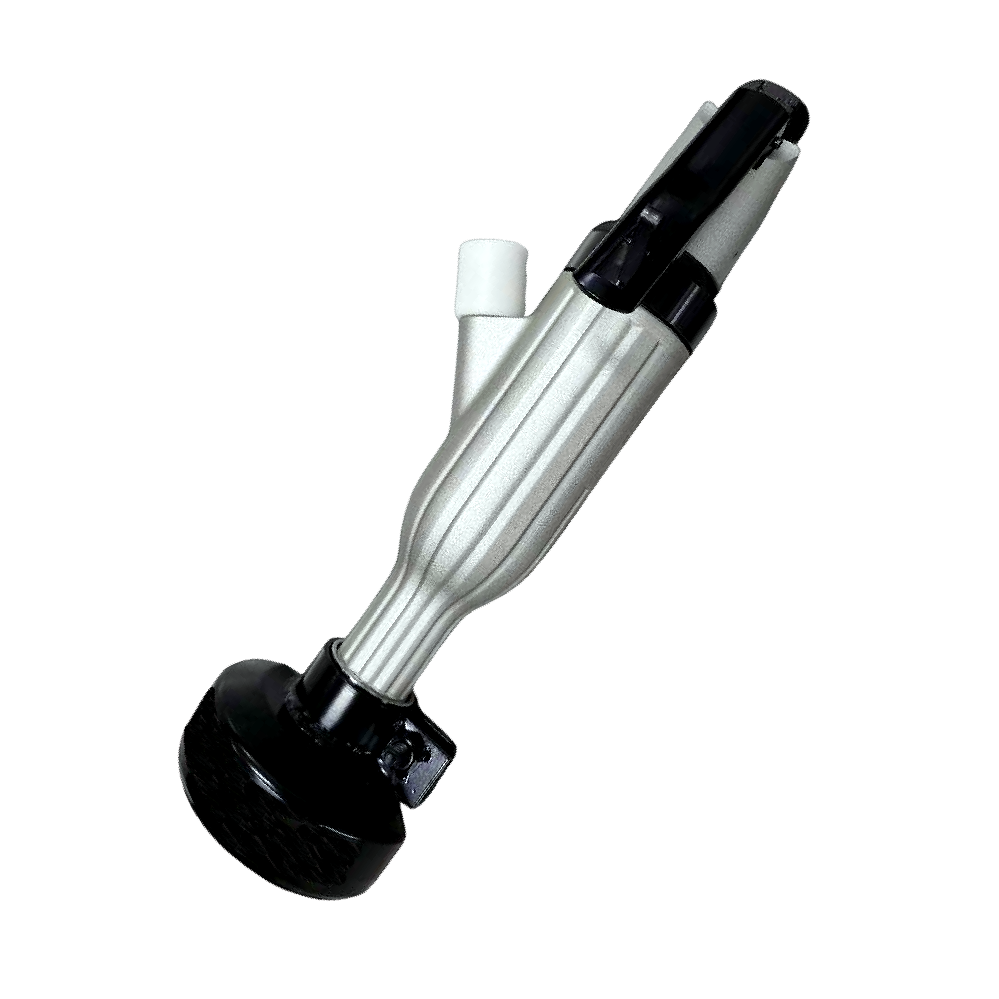

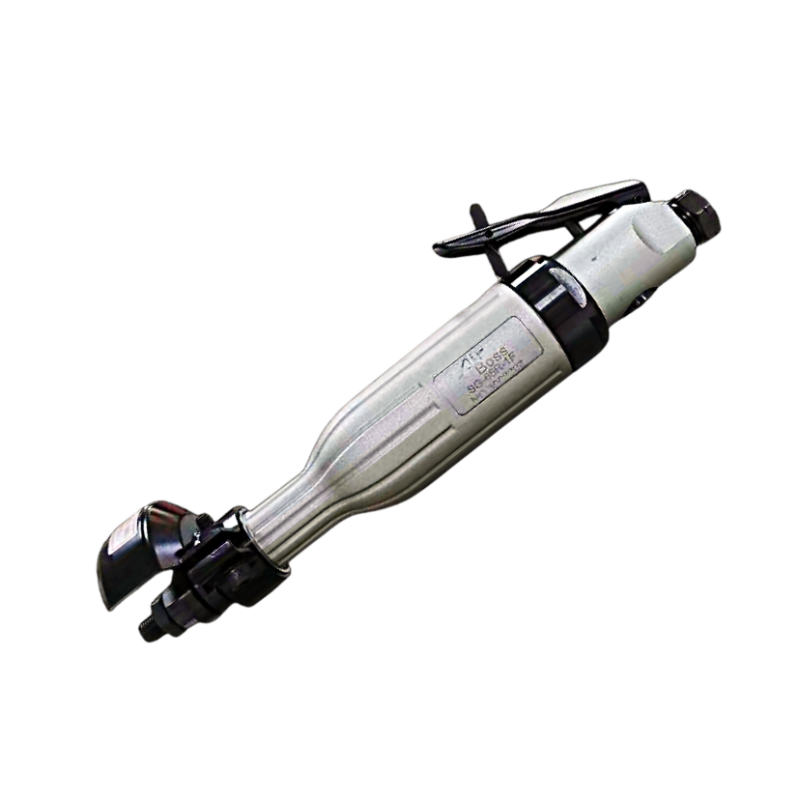

Air Straight Grinder - Lever type
Model :
SG-65R-1F
‧Model: SG-65R-1F
‧Spindle thread size : 3/8-24UNF
‧ Free speed 14600 R.P.M.
‧Ergonomic design for various milling and grinding engineering.
‧Powerful and durable even in harsh working environment.
‧Shorter and compact
‧Spindle thread size : 3/8-24UNF
‧ Free speed 14600 R.P.M.
‧Ergonomic design for various milling and grinding engineering.
‧Powerful and durable even in harsh working environment.
‧Shorter and compact
| Model | Capacity( Grinding Wheel) | Free Speed | Power | Horsepower | Spindle Thread Size | Overal Length | Net Weight | Air Consumption | Air Inlet | Air Hose | Air Pressure | ||||||
| mm | in | r.p.m | w | hp | in | mm | in | lbs | kg | m3/min | ft3/min | PT (in) | mm | in | kg/cm2 | ||
| SG-65R-1F | 65×13×9.53 | 2 1/2×1/2×3/8 | 14600 | 480 | 0.64 | 3/8-24UNF | 282 | 11 7/64 | 3.1 | 1.42 | 0.6 | 19.4 | 3/8" | 9.5 | 3/8 | 6.3 | |
