1/2"Light Weight Air Impact Wrench
Model :
AW-100P 1/2"

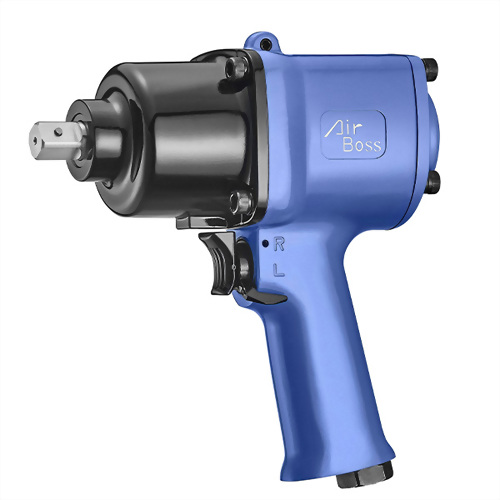

Model: AW-100P. 1/2" lightweight pneumatic impact wrench. (gun type)). Clutch Type: Twin Hammer. Bolt capacity: 19mm. The maximum torque is 598 (ft-lb) 810N.M. The weight is 3.9 (lbs) 1.8 (kg). It is suitable for various industries. Such as aerospace industry, shipbuilding industry, automobile assembly, locomotive assembly, bicycle assembly, refrigeration equipment and other industrial assembly. Rubber handles can be added at will.
Model: AW-100PL. 1/2" lightweight pneumatic impact wrench. Impact shaft length: 2.5". (gun type)). Clutch Type: Twin Hammer. Bolt capacity: 19mm. Maximum torque is 598 (ft-lb) 810N .M, the weight of the pneumatic impact wrench is 3.9 (lbs) 1.8 (kg). It is suitable for industrial working environment with high frequency of use. It is also suitable for auto repair, patent, and environmental protection. Stable quality. Long tool life.
Model: AW-100PL. 1/2" lightweight pneumatic impact wrench. Impact shaft length: 2.5". (gun type)). Clutch Type: Twin Hammer. Bolt capacity: 19mm. Maximum torque is 598 (ft-lb) 810N .M, the weight of the pneumatic impact wrench is 3.9 (lbs) 1.8 (kg). It is suitable for industrial working environment with high frequency of use. It is also suitable for auto repair, patent, and environmental protection. Stable quality. Long tool life.
| Model | Bolt Capacity | Clutch Type | Free Speed | Suitable Torque | Max Torque | Overall Length | Net Weight | Air Consumption | Air Inlet | Air Hose | Air Pressure | ||||
| mm | Mechanism | r.p.m. | ft-lb | N.M. | ft-lb | N.M. | mm | lbs | kg | m3/min | PT(in.) | mm | kg/cm2 | ||
| AW-100P | 18 | Twin Hammer | 7500 | 25 - 369 | 34-500 | 598 | 810 | 160 | 3.9 | 1.8 | 0.3 | 1/4" | 6.4 | 6.3 | |
| AW-100PL | 18 | Twin Hammer | 7500 | 25 - 369 | 34-500 | 598 | 810 | 202 | 4.2 | 1.9 | 0.3 | 1/4" | 6.4 | 6.3 | |
