3/8" Air Oil Pulse Wrench

Model : APW-80PA 3/8"

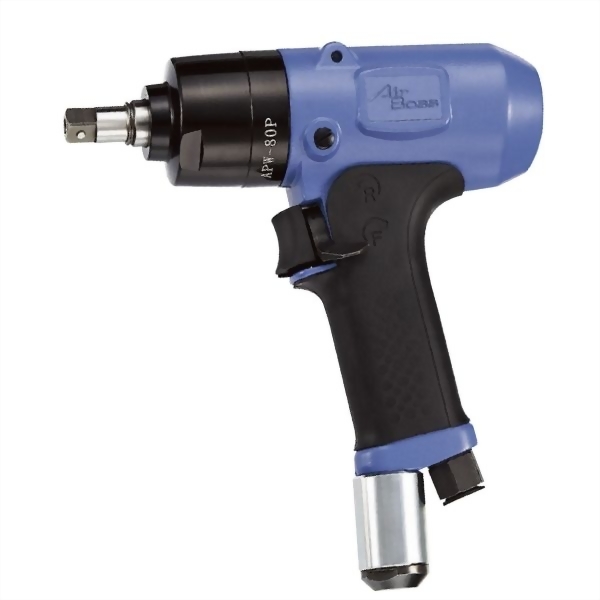

3/8" APW-80PA Shut off Type and Pistol design Air oil pulse wrench is excellent for industrial assembly line. The high precision and lower maintance cost create better solution for any kind of industrial needs. The suitable torque is 30-51 (ft-lb) 40-70N.M. The weight is 2.64 lbs/1.2 kg. The thread type would be NPT in North America, PF/BSP in Europe and PT in Asia.

Model Bolt Capacity Clutch Free Speed Suitable Torque Air lnlet Air Hose Air Consumption Weight Overall Length Air Pressure
mm Mechanism r.p.m. ft-lb N.M. PT(in) mm m3/min lbs kg mm kg/cm2
APW-80PA 10 Oil Pulse 6000 30 - 51 40 - 70 1/4" 10 0.54 2.64 1.2 176 6.3
