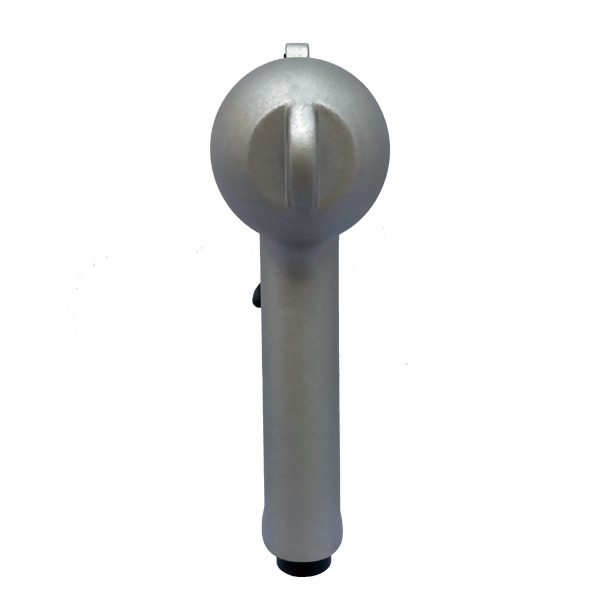

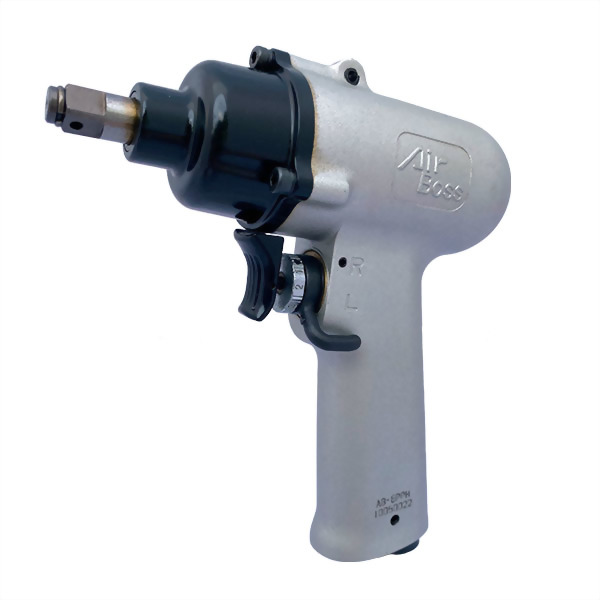

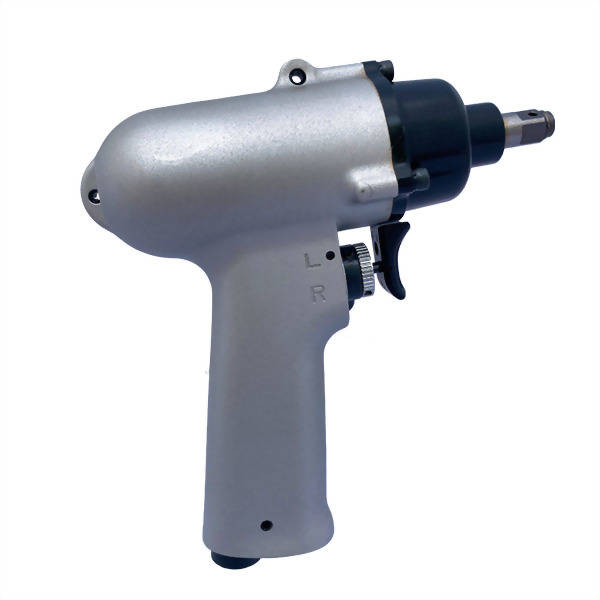

3/8"Air Impact Wrench
Model :
AB-6PPH 3/8"
AB-6PPH 3/8" Screwdriver. Twin dog a nd pistol type designed with the torque 13-37 (ft-lb) 17-50 N.M, the weight is 2.2 lbs(1kg) Suitable for industrial assembly, furniture assembly, bicycle assembly, motorcycle assembly. The thread will be divided to NPT for North America, PF/BSP for Europe and PT for Asia.
| Model | Bolt Capacity | Clutch | Free Speed | Suitable Torque | Overall Length | Net Weight | Air Consumption | Air Inlet | Air Hose | Air Pressure | ||
| mm | Mechanism | r.p.m. | ft-lb | N.M. | mm | lbs | kg | m3/min | PT(in.) | mm | kg/c㎡ | |
| AB-6PPH | 5-6 | Twin Dog | 10000 | 13-37 | 17-50 | 159 | 2.2 | 1.0 | 0.3 | 1/4" | 6.4 | 6.3 |
